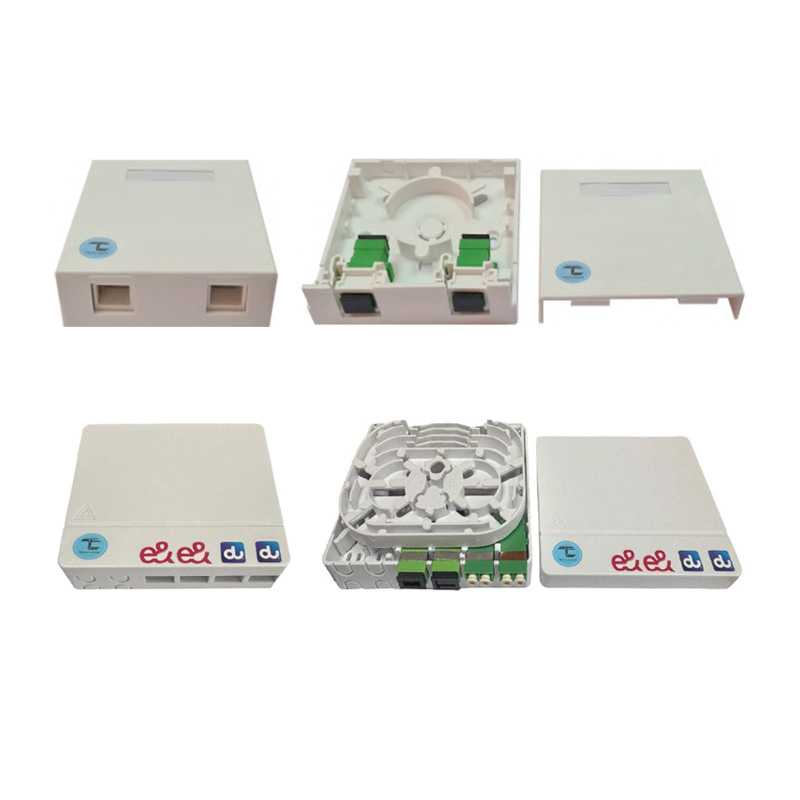

Techlogiks micro ODF range is designed specifically for FTTH applications. Its compact size, light weight, highstrength and impact resistance, integrated cables management makes it suitable for small fiber terminationrequirements.
Applications
- Telecommunication Networks
- Local Area Networks
- FTTH
- CATV Networks
- Active Device Termination
Features
- Suitable for LC, SC adaptors.
- Up to 4 ports capacity.
- Compact size, light weight, Flame proof materials.
- Convenience and ease of handling
- Integrated heat shrink splice holder and fiber management
| Specifications |
| Dimensions |
86mm (L) x 86mm (W) for 2 Port / 100mm (L) x 84mm (W) for 4 Port |
| Material |
Flame retardant ABS |
| Color |
Ivory/White |
| Splice Capacity |
Max. 4 Fibers for 2 port / Max. 8 Fibers for 4 port |
| Adaptors |
SC, SC/APC, LC, LC/APC |
| ORDERING INFORMATION |
| Part Number |
Description |
| TL-FDF-MR02 |
Micro ODF Suitable for 2 SC Simplex adaptors |
| TL-FDF-MR04 |
Micro ODF Suitable for 2 LC Duplex adaptors |
| TL-FDF-MR04S08L |
Micro ODF Suitable for 2 SC Simplex and 2 LC Duplex Snaggles Adapters |
