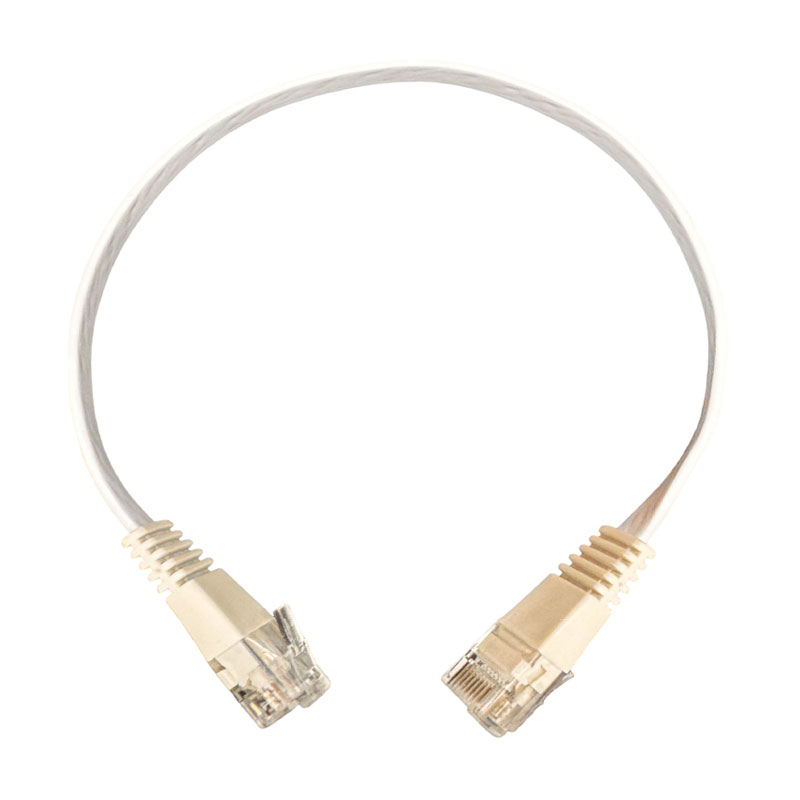

Techlogiks Category 6 U/UTP flat patch cord is ideal for special network installations where space is tight. Category 6 patch cords are manufactured and tested to the ISO/IEC 11801, EN 568B & ANSI/TIA-568.2-D Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements & will provide an optimal performance level of category 6 cabling. The 30 AWG stranded conductor and flat construction easy to bend or change. Normally, the patch cord will be in TIA 568B wiring & TIA 568A wiring method.
Features:
Helps reduce congestion in high-density data centers and telecommunication rooms
Provides excellent transmission performance and low signal loss
Helps reduce congestion in high–density data centers and telecommunications rooms
Use in patch panels or equipment connections in enterprise networks and data centers

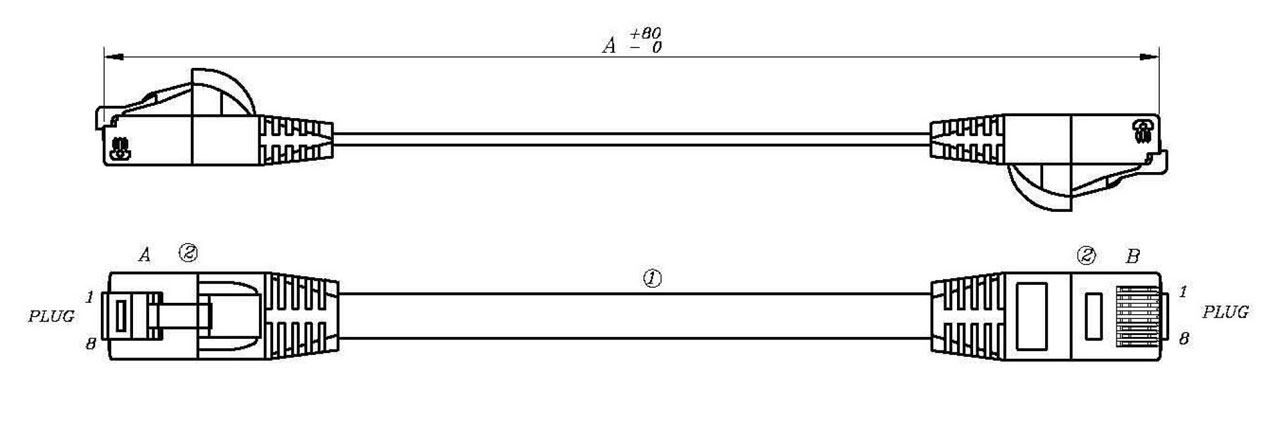

Product Figure:
Construction
Structure
Category Type
Category 6
Construction
UTP (Unshielded Twisted Pair)
Number of Pairs
4 Twisted Pair
Conductor Dimension
30 AWG/7 (7 Stranded copper wires in each conductor)
Solid or stranded; Bare or tinned
Stranded Bare Copper
Plug
Cat6 Unshielded Type Plug
Outer Jacket
Material
PVC
Color
White
Outer Diameter
1.6*6.7mm
Mechanical Characteristics
Insertion Life
750 Mating Cycles
Insertion Temperature
0-50°C
Mating Cycle
>1200
Electrical Characteristics
Current Rating
1.5A
Insulation Resistance
100 MΩ Min
Contact Resistance
20 MΩ Max
Dielectric Strength
500 VAC (rms)
Voltage
72 VDC Max
Ordering Information
Part Number
Description
TL-PCC6-FL-UH0.2WH
Cat 6 Unshielded 30AWG Flat Patch Cord PVC, 0.2 Meter, White Color
TL-PCC6-FL-UH0.3WH
Cat 6 Unshielded 30AWG Flat Patch Cord PVC, 0.3 Meter, White Color
TL-PCC6-FL-UHXXWH
XX – 0.2,0.3,01,02,03,04….
